Project 3: Stickleback morphology - armor plate shape

In this project, the number, area and shape of armor plating is measured as a continuous trait using a combination of threshold, watershed and edit_contour.

Before

Input - Stained threespine stickleback. The size of plates at a given plate index varies within at between ecotypes (e.g. lake and stream morphs)

After

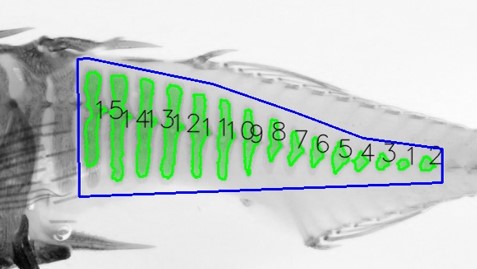

Results - After applying adaptive thresholding and watershed algorithms, the plates separate. Where this is not the case they can be separated manually.

Background

Variation in continuous phenotypic traits like shape or area of certain structures are difficult to quantify in a discrete fashion, e.g. with landmarks, because they are too complex or have no underlying assumption of homology.

Here, sticklback armor plates and their shape features are detected in a two-step process. First, a mask was set around the posterior region that contains the plates, which is then tresholded. Due to the red staining, the “red channel” contains highest signal-to-noise-ratio, and is thus used (specified in threshold). Then, the watershed algorithm is applied to the specified region to erode the area between the plates, which produces another binary image (fed to detect_contour). Remaining plate-overlap is removed with the edit_contour tool, and detect_contour is used a once more to determine the final plate boundaries.

In the second step, the configuration file is modified to add compute_shape_featues, followed by a “silent run” feedback=False. By running this second step only after the initial plate separation, the first step with the actual plate segmentation can be run much faster: depending on the number of objects in the image, compute_shape_featues can be quite computationally intensive, so running it after the final contours have been detected will speed things up. This is a useful approach also for other scenarios.

The watershed algorithm, which helps to separate detected objects into “peaks of wanted information” and “valleys of unwanted information”, is explained here: https://docs.opencv.org/master/d3/db4/tutorial_py_watershed.html

NOTE: These are the same images as in https://www.phenopype.org/gallery/project_2/ - reference detection and ID-entry are shown there and thus skipped here.

Preparation

[1]:
import phenopype as pp
import os

## change working dir - will contain project folder
os.chdir(r"D:\git-repos\phenopype\phenopype-gallery\_temp")

## set project name
project_name = "project_3"

## fetch template from downloaded template repo (https://github.com/phenopype/phenopype-templates)
template_path = r"D:\git-repos\phenopype\phenopype-templates\templates\gallery\project_3.yaml"

## set directory with images
image_dir = r"D:\git-repos\phenopype\phenopype-gallery\gallery\data"
phenopype successfully imported the following plugin dependencies:
phenomorph, keras

Project

[3]:
proj = pp.Project(project_name)
--------------------------------------------
Creating a new phenopype project directory at:
D:\git-repos\phenopype\phenopype-gallery\_temp\project_3

Proceed? (y/n)
y

Project "project_3" successfully created.
--------------------------------------------
[4]:
## add all stickleback-images from the data folder, but exclude the two that don't belong to the series
proj.add_files(image_dir = image_dir, include="stickle", exclude=["side","top"])
--------------------------------------------
phenopype will search for image files at

D:\git-repos\phenopype\phenopype-gallery\gallery\data

using the following settings:

filetypes: ['jpg', 'JPG', 'jpeg', 'JPEG', 'tif', 'png', 'bmp'], include: stickle, exclude: ['side', 'top'], mode: copy, recursive: False, resize: False, unique: path

Found image stickle1.jpg - phenopype-project folder 0__stickle1 created
Found image stickle2.jpg - phenopype-project folder 0__stickle2 created
Found image stickle3.jpg - phenopype-project folder 0__stickle3 created

Found 3 files - using all
--------------------------------------------
[10]:
## add the config template; provide a tag
proj.add_config(template_path=template_path, tag="v1", overwrite=True)
- template saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle1\pype_config_v1.yaml (overwritten)
- template saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle2\pype_config_v1.yaml (overwritten)
- template saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle3\pype_config_v1.yaml (overwritten)
[11]:
## run image processing
for path in proj.dir_paths:
    pp.Pype(path, tag="v1")

AUTOLOAD
- annotations loaded:
{
"mask": ["a"],
"drawing": ["a", "b"]
}
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Updating pype config: applying staged changes


------------+++ new pype iteration 2022-07-29 11:34:00 +++--------------




PREPROCESSING
create_mask
- loaded existing annotation of type "mask" with ID "a": skipping (edit=False)


SEGMENTATION
threshold
- decompose image: using green channel
- including pixels from 1 drawn masks
morphology
detect_contour
- found 11 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 19 contours that match criteria
detect_contour
- found 14 contours that match criteria
edit_contour
- loaded existing annotation of type "drawing" with ID "a": skipping (edit=False)
detect_contour
- found 14 contours that match criteria


VISUALIZATION
select_canvas
- green channel


SEGMENTATION
edit_contour
- loaded existing annotation of type "drawing" with ID "b": skipping (edit=False)
detect_contour
- found 10 contours that match criteria


VISUALIZATION
select_canvas
- green channel
draw_contour
draw_mask


EXPORT
save_annotation
- loading existing annotation file
- no annotation_type selected - exporting all annotations
- updating annotations of type "mask" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "drawing" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "drawing" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "c" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "d" in "annotations_v1.json" (overwrite="entry")


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------


AUTOSHOW


TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle1\canvas_v1.jpg (overwritten).

AUTOLOAD
- annotations loaded:
{
"mask": ["a"],
"drawing": ["a", "b"]
}
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Updating pype config: applying staged changes


------------+++ new pype iteration 2022-07-29 11:34:05 +++--------------




PREPROCESSING
create_mask
- loaded existing annotation of type "mask" with ID "a": skipping (edit=False)


SEGMENTATION
threshold
- decompose image: using green channel
- including pixels from 1 drawn masks
morphology
detect_contour
- found 2 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 9 contours that match criteria
detect_contour
- found 6 contours that match criteria
edit_contour
- loaded existing annotation of type "drawing" with ID "a": skipping (edit=False)
detect_contour
- found 6 contours that match criteria


VISUALIZATION
select_canvas
- green channel


SEGMENTATION
edit_contour
- loaded existing annotation of type "drawing" with ID "b": skipping (edit=False)
detect_contour
- found 6 contours that match criteria


VISUALIZATION
select_canvas
- green channel
draw_contour
draw_mask


EXPORT
save_annotation
- loading existing annotation file
- no annotation_type selected - exporting all annotations
- updating annotations of type "mask" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "drawing" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "drawing" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "c" in "annotations_v1.json" (overwrite="entry")
- updating annotations of type "contour" with id "d" in "annotations_v1.json" (overwrite="entry")


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------


AUTOSHOW


TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle2\canvas_v1.jpg.

AUTOLOAD
 - nothing to autoload
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Stage: add annotation control args
Updating pype config: applying staged changes


------------+++ new pype iteration 2022-07-29 11:34:08 +++--------------




PREPROCESSING
create_mask
remove


SEGMENTATION
threshold
- decompose image: using green channel
- including pixels from 1 drawn masks
morphology
detect_contour
- found 8 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 9 contours that match criteria
detect_contour
- found 8 contours that match criteria
edit_contour
detect_contour
- found 8 contours that match criteria


VISUALIZATION
select_canvas
- green channel


SEGMENTATION
edit_contour
detect_contour
- found 8 contours that match criteria


VISUALIZATION
select_canvas
- green channel
draw_contour
draw_mask


EXPORT
save_annotation
- creating new annotation file
- no annotation_type selected - exporting all annotations
- writing annotations of type "mask" with id "a" to "annotations_v1.json"
- writing annotations of type "contour" with id "a" to "annotations_v1.json"
- writing annotations of type "contour" with id "b" to "annotations_v1.json"
- writing annotations of type "contour" with id "c" to "annotations_v1.json"
- writing annotations of type "contour" with id "d" to "annotations_v1.json"
- writing annotations of type "drawing" with id "a" to "annotations_v1.json"
- writing annotations of type "drawing" with id "b" to "annotations_v1.json"


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------


AUTOSHOW


TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\git-repos\phenopype\phenopype-gallery\_temp\project_3\data\0__stickle3\canvas_v1.jpg.

Edit config to extract shape features

[12]:
target1 = """    - measurement:"""
replacement1 = """    - measurement:
        - compute_shape_features:
            features: [basic, moments, hu_moments]"""

proj.edit_config(tag="v1", target=target1, replacement=replacement1)
[13]:
## run image processing with deactivated feedback
for path in proj.dir_paths:
    pp.Pype(path, tag="v1", feedback=False)
Format path to abspath
- no annotation_type selected - returning all annotations

AUTOLOAD
- annotations loaded:
{
"contour": ["a", "b", "c", "d"],
"drawing": ["a", "b"],
"mask": ["a"],
"shape_features": ["a"]
}


------------+++ new pype iteration 2022-01-17 22:16:19 +++--------------




PREPROCESSING
create_mask
- loaded existing annotation of type "mask" with ID "a": skipping (edit=False)


SEGMENTATION
threshold
- decompose image: using red channel
- including pixels from 1 drawn masks
morphology
detect_contour
- loaded existing annotation of type "contour" with ID "a": overwriting (edit=overwrite)
- found 4 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 12 contours that match criteria
detect_contour
- loaded existing annotation of type "contour" with ID "b": overwriting (edit=overwrite)
- found 9 contours that match criteria
edit_contour
- loaded existing annotation of type "drawing" with ID "a": editing (edit=True)
BIER
detect_contour
- loaded existing annotation of type "contour" with ID "c": overwriting (edit=overwrite)
- found 15 contours that match criteria


VISUALIZATION
select_canvas
- red channel


SEGMENTATION
edit_contour
- loaded existing annotation of type "drawing" with ID "b": skipping (edit=False)
detect_contour
- loaded existing annotation of type "contour" with ID "d": overwriting (edit=overwrite)
- found 15 contours that match criteria


VISUALIZATION
select_canvas
- red channel
draw_contour
draw_mask


EXPORT
save_annotation
- loading existing annotation file
- updating annotation of type "contour" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "c" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "d" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "mask" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "shape_features" with id "a" in "annotations_v1.json" (overwrite="entry")


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------




TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\data\0__stickle1\canvas_v1.jpg (overwritten).
Format path to abspath
- no annotation_type selected - returning all annotations

AUTOLOAD
- annotations loaded:
{
"mask": ["a"],
"contour": ["a", "b", "c", "d"],
"drawing": ["a", "b"],
"shape_features": ["a"]
}


------------+++ new pype iteration 2022-01-17 22:16:20 +++--------------




PREPROCESSING
create_mask
- loaded existing annotation of type "mask" with ID "a": skipping (edit=False)


SEGMENTATION
threshold
- decompose image: using red channel
- including pixels from 1 drawn masks
morphology
detect_contour
- loaded existing annotation of type "contour" with ID "a": overwriting (edit=overwrite)
- found 1 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 7 contours that match criteria
detect_contour
- loaded existing annotation of type "contour" with ID "b": overwriting (edit=overwrite)
- found 5 contours that match criteria
edit_contour
- loaded existing annotation of type "drawing" with ID "a": skipping (edit=False)
detect_contour
- loaded existing annotation of type "contour" with ID "c": overwriting (edit=overwrite)
- found 5 contours that match criteria


VISUALIZATION
select_canvas
- red channel


SEGMENTATION
edit_contour
- loaded existing annotation of type "drawing" with ID "b": skipping (edit=False)
detect_contour
- loaded existing annotation of type "contour" with ID "d": overwriting (edit=overwrite)
- found 12 contours that match criteria


VISUALIZATION
select_canvas
- red channel
draw_contour
draw_mask


EXPORT
save_annotation
- loading existing annotation file
- updating annotation of type "mask" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "c" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "d" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "shape_features" with id "a" in "annotations_v1.json" (overwrite="entry")


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------




TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\data\0__stickle2\canvas_v1.jpg (overwritten).
Format path to abspath
- no annotation_type selected - returning all annotations

AUTOLOAD
- annotations loaded:
{
"mask": ["a"],
"contour": ["a", "b", "c", "d"],
"drawing": ["a", "b"],
"shape_features": ["a"]
}


------------+++ new pype iteration 2022-01-17 22:16:21 +++--------------




PREPROCESSING
create_mask
- loaded existing annotation of type "mask" with ID "a": skipping (edit=False)


SEGMENTATION
threshold
- decompose image: using red channel
- including pixels from 1 drawn masks
morphology
detect_contour
- loaded existing annotation of type "contour" with ID "a": overwriting (edit=overwrite)
- found 12 contours that match criteria
watershed
- even kernel size supplied, adding 1 to make odd
- found 5 contours that match criteria
detect_contour
- loaded existing annotation of type "contour" with ID "b": overwriting (edit=overwrite)
- found 4 contours that match criteria
edit_contour
- loaded existing annotation of type "drawing" with ID "a": skipping (edit=False)
detect_contour
- loaded existing annotation of type "contour" with ID "c": overwriting (edit=overwrite)
- found 4 contours that match criteria


VISUALIZATION
select_canvas
- red channel


SEGMENTATION
edit_contour
- loaded existing annotation of type "drawing" with ID "b": skipping (edit=False)
detect_contour
- loaded existing annotation of type "contour" with ID "d": overwriting (edit=overwrite)
- found 15 contours that match criteria


VISUALIZATION
select_canvas
- red channel
draw_contour
draw_mask


EXPORT
save_annotation
- loading existing annotation file
- updating annotation of type "mask" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "c" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "contour" with id "d" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "a" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "drawing" with id "b" in "annotations_v1.json" (overwrite="entry")
- updating annotation of type "shape_features" with id "a" in "annotations_v1.json" (overwrite="entry")


------------+++ finished pype iteration +++--------------
-------(End with Ctrl+Enter or re-run with Enter)--------




TERMINATE

AUTOSAVE
- save_canvas
- image saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\data\0__stickle3\canvas_v1.jpg (overwritten).
[8]:
## collect results and store in folder "<project-root>/results/annotations"
proj.collect_results("v1", "annotations", "annotations", overwrite=True)
Created D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\results\annotations
Search string: ['annotations_v1']
Collected annotations_v1.json from 0__stickle1
0__stickle1_annotations_v1.json saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\results\annotations\0__stickle1_annotations_v1.json.
Collected annotations_v1.json from 0__stickle2
0__stickle2_annotations_v1.json saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\results\annotations\0__stickle2_annotations_v1.json.
Collected annotations_v1.json from 0__stickle3
0__stickle3_annotations_v1.json saved under D:\workspace\git-repos\phenopype\phenopype-gallery\_temp\project_3\project\results\annotations\0__stickle3_annotations_v1.json.
[14]:
## display results
import ipyplot ## install with `pip install ipyplot`

canvas_list = []
for path in proj.dir_paths:
    canvas_list.append(pp.load_image(os.path.join(path, "canvas_v1.jpg"), mode="rgb"))

ipyplot.plot_images(canvas_list, img_width=300)
[ ]:
